The N2CKH Test Bench


What ham can be without a test bench. Well until recently this ham had been without a real test bench for way too many years. I still had the VOM and DMM and even an osiloscope, but not a real test bench since moving to Lakewood in 1985 when I sold most of my test equiopment for lack of enough space to put it all in.

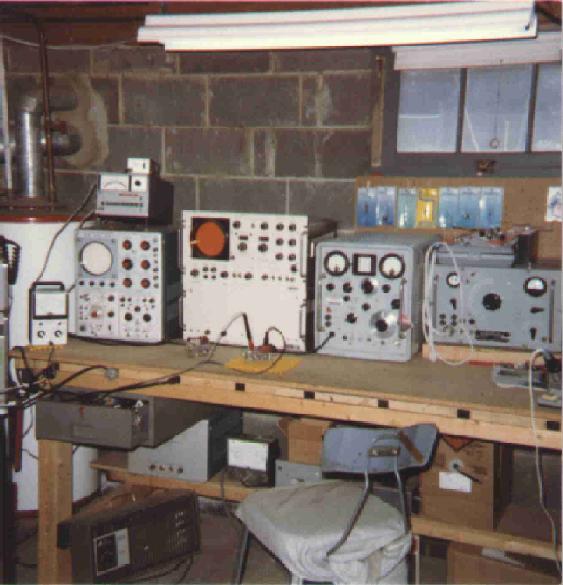

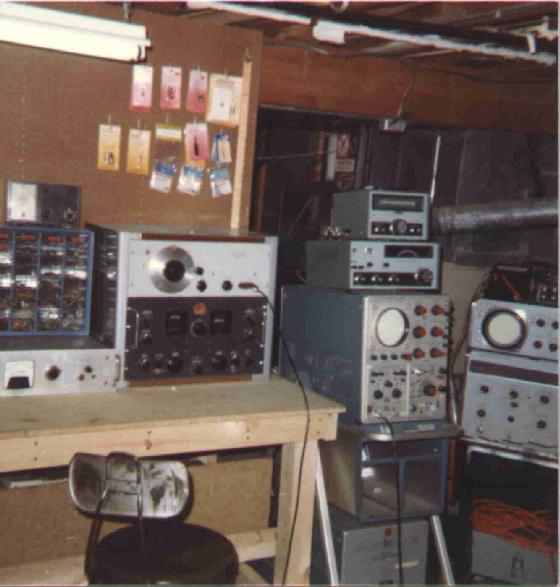

THE OLD TEST BENCH

Between 1975 and 1985 I built two large 10x3 foot test benches in the cellar of my parents house (with my Fathers help) that hosted the equipments pictured below. There was no way I was going to get this stuff into a small ranch with no basement that would soon also occupy my child bride to be !

Click here to enlarge photo

I had all the required equipment to perform calibration, alignment and repairs to most amateur and commercial radio equipments on the time.

In the photos among other things one can see a GE 100 Amp DC power supply, Hewlett Packard Audio and RF signal gererators, Hammerlund receivers (coverage of DC through UHF). Tektronics Osciloscopes and Hewlett Packard and Singer Spectrum analyzers (DC to 40Ghz), HP RF Milivolt meter and various other meters, bridges and signal sources.

Click here to enlarge photo

However, I disposed of most of the equipment when I moved into my current home as I had no basement and did not plan to continue the type of experimentation and electronics work that demanded such equipement.

Click here to enlarge photo

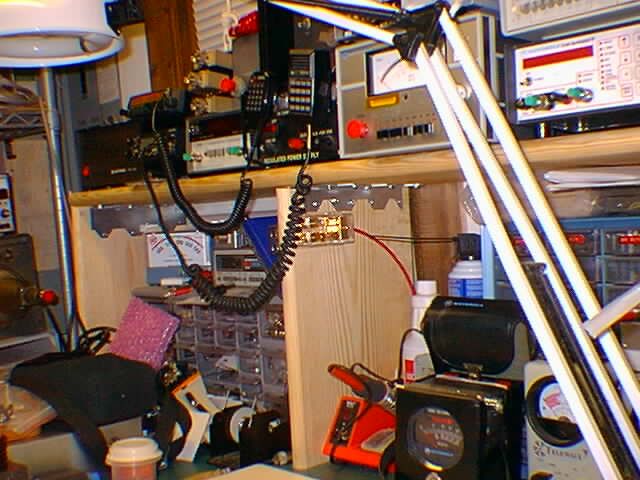

THE CURRENT TEST BENCH:

Click here to enlarge photo

When it comes to test bench work these days my main interest is the building of VHF/UHF FM repeater systems and the restoring old Yaesu FT-101x series transceivers and amplifiers as well as reparing whatever drops dead for either lack of use or heavy use. As such I have recently built a new test bench around two-way radio specific service equipments in particular.

Click here to enlarge photo

As we entered the year 2001 I started to get refocused on various aspects of Amateur Radio and realized that I once again required a real test bench. Not having the room that I once did has necessitated a more compact set up and luckily the equipments have gotten smaller over the years. I have a number of equipments that overlap each other in features and frequency ranges for multi purpose applications.

Click here to enlarge photo

My bench is based on a heavy 1 1/4 inch thich formica work table with an adjustable steel frame for height above floor dimensions. The table top is 30 deep by 48 inches wide. On on the table top is a 34 x 48 inch 3M static control table mat (color green) with wrist strap table top grounding system. I also have a 16 x 16 inch square 1/2 inch thick Teflon plate (color white) that sits on top of the 3M anti-static mat for use with heavy items that could damage the 3M mat. Fop this purpose I drape Clauss Electronics Division "Softy" anti-static work mats (color white) over the teflon plate.

Click here to enlarge photo

I monitor my A.C. power line with a Viz RMS line monitor which has a calibrated scale of 100-140 volts. I also have a Northern Technologies A.C. power conditioner as my A.C. outlet for A.C. powered equipments under test.

For D.C. power sources I have four analog power supplied in the bench. An Astron RM-12, 13.8v D.C. 12 amp peak unit. An Astron RS-50M 13.8v D.C. 50 amp peak supply with a heavy 8 gauge dual outlet fused power buss to the bench for powering and testing high power trasmitters and amplifiers.

Click here to enlarge photo

I also have two variable voltage bench top supplies, a 0-50 volt 2 ampere New Jersey Electronics (NJE) model LVC 50-0.5 laboratory power supply (made while my father work for the company and was production manager) and a 4.5-15 volt 25 amp Pyramid Pase III supply.


The main piece of equipement is a Motorola R-2002D/HD Communications Analyzer, commonly referred to as a Service Monitor.

I found a fairly good deal on a surplus unit from the U.S. Navy used by the Navy Metrology and Calibration METCAL that was kept in tip top shape and came complete with all accessories.

Click here to enlarge photo

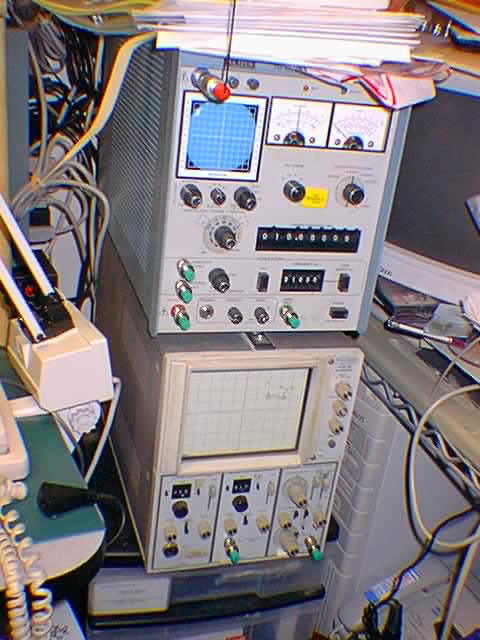

Next is an older Eaton AILTECH FM-100 Service Monitor.

Click here to enlarge photo


Then there is a Wiltron 640 RF Network Analyzer (under the Ailtech) which includes such desirable features as a 1 to 1500MHz RF sweep generator which covers the entire range in one continuous sweep is also part of the bench. This item serves mainly for the tuning of duplexer and filter cavities and testing of transmission lines.

Click here to enlarge photo

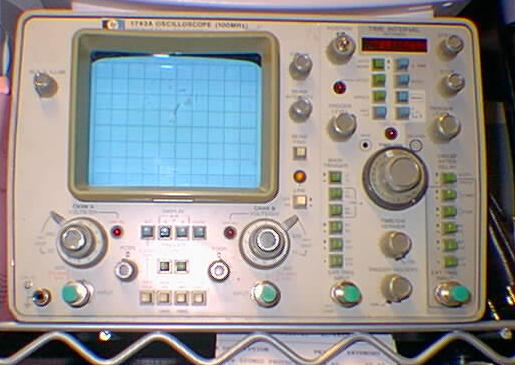

Hewlett-Packard 1743A 100Mhz oscilloscope:

Click here to enlarge photo

A general purpose portable, lab quality oscialloscope.

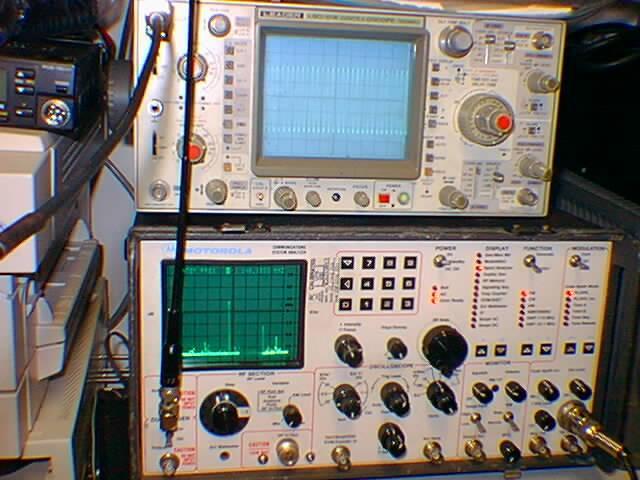

Leader LBO-518 100Mhz oscilloscope:

Click here to enlarge photo

A general purpose portable, lab quality oscilloscope shown seated on top of the R2002D.

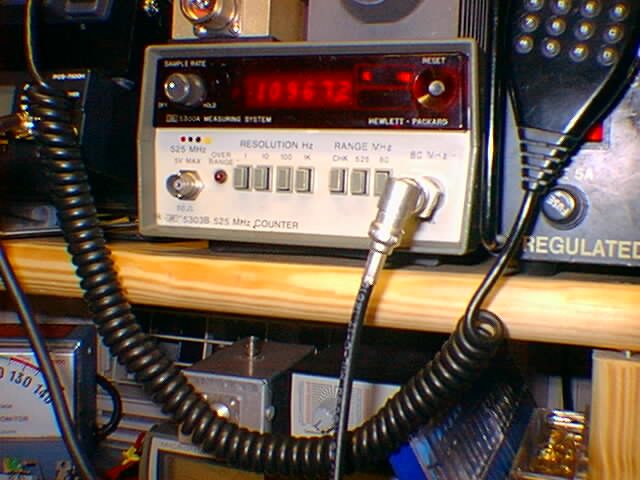

Hewlett-Packard HP 5300A/5303B 525 MHz Frequency Counter:

Click here to enlarge photo

The 5300A Measurement System Mainframe unit provides the system power, reference frequency, display, counting logic and timing control required for plug-in's. Features include: 6-digit dot matrix display, overflow indicator, standard timebase, external timebase input and BCD output as a standard rear panel output. The crystal frequency is 10MHz with a typical stability of less than plus or minus 2 parts in 106. Oscillator output is 10MHz, approximately 1 Vrms at rear panel BNC, 100 ohm source impedance.

Click here to enlarge photo

HP 5300A measuring system mainframe with a 5303B frequency counter module that has a 6 digit dot matrix display, standard time base, external time base input & BCD output as a standard rear panel output. The 5303B has 2 input channels: Channel A (CW or Burst) has a range of DC to 525MHz prescaled by 8 and Fixed Sensitivity 100 mV rms sine wave, dc to 500MHz. 125mV rms sine wave, 500MHz to 525MHz. Signal must pass through zero Channel B (CW or Burst) has a range of 50Hz to 80MHz direct and Automatic Sensitivity 25 mV rms sine wave, 100Hz to 50MHz. 50mV rms sine wave, 50 Hz to 100 Hz and 50 MHz to 80 MHz. Sensitivity is adjusted automatically by Automatic Gain Control.

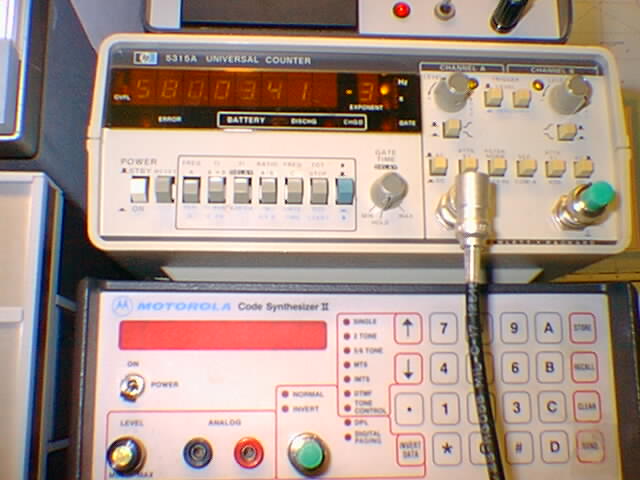

Hewlett-Packard HP 5315A 100 MHz Universal Counter:

Click here to enlarge photo

The versatile 5315A has a range from 0.1 Hz to 100 MHz (on A & B inputs). Time interval delay: holdoff, variable delay of nominally 500 microseconds to 20 ms between "START" (on Channel A) and "STOP" (on Channel B). All measurements have up to 8 digit resolution. The 5315A Universal Counter measures signals over 0.1Hz to 100MHz range. The unit measures Period: 10ns to 105Sec; Time Interval: 100 ns to 105 Sec; Time Interval Average: 0 ns to 105 Sec; Time Interval Delay: holdoff, variable delay of nominally 500s to 20ms between START (channel A) and STOP (channel B); and Ratio: 0.1Hz to 100MHz, both channels. A totalize function with manual or external gating is also provided. All measurements, except totalize, have up to 8-digits resolution. Two channels provide time interval measurements

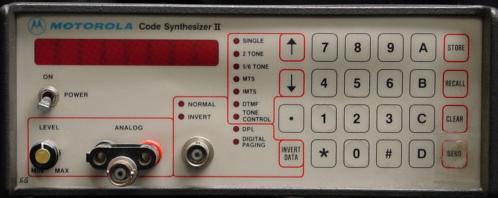

Motorola R-1150B Code Synthesizer II for external tone signaling.

Click here to enlarge photo

The Code Synthesizer is a universal signaling encoder that generates tone digital signaling codes used in two-way radios, paging, and car telephones to include Single Tone, 2 Tone, 5/6 Tone, MTS, IMTS, DTMF, Tone Control, DPL, Digital Paging tests, with 8 digit readout. In single tone it operates as a general purpose audio oscillator.

Click here to enlarge photo

Click here to enlarge photo


Motorola S-1350A portable watt meter.

Click here to enlarge photo

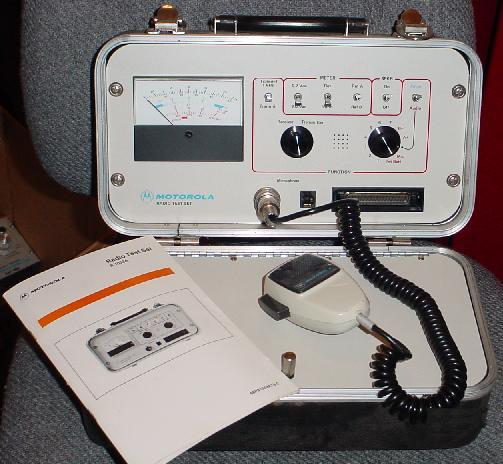

Motorola R-1033A Test Set:

Click here to enlarge photo

A Motorola radio specific test set for metering of receiver and transmitter stage A.C. or D.C. voltages and current parameters for radio alignment.

It also provides accurate measurements of audio output for receiver quieting or Sinad measurements. A self contained speaker permits audio monitoring and a built in PTT switch or optionally either a Motrac or Mostar wired microphone can be used for PTT and actual voice transmissions. Also built in is a 1Khz oscillator for Sinad testing.

I was lucky that when purchased I received complete cable sets and documentation with the unit for the testing of Mitrek, Micor, MSF-5000 and other Motorola radio types.

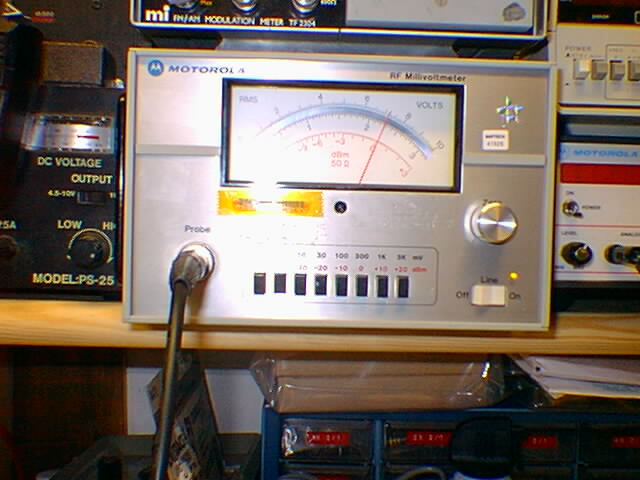

Motorola S-1339A RR Millivolt meter:

Click here to enlarge photo

RF Milvolt Meter, analog, mirrored scale, 50 ohm impedance, frequency range of 10 kHz to 1.2 GHz. RF level measurement sensitivity ranging from .1-3000 mV (100uV to 3V) RF. It also can measure in dbm, ranging -50 to +20dbm.

Click here to enlarge photo

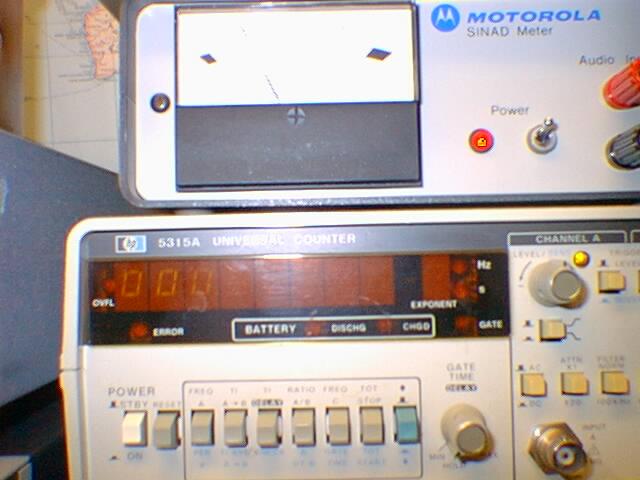

Motorola R-1013A Sinad meter:

Click here to enlarge photo

Built in A.C. powered or DC powered bench top Sinad meter for receiver sensitivity measurements. Sinad or rather Signal-to-Noise-And-Distortion ratio is the ratio of the input signal to the sum of noise and harmonics: SINAD = 20 log (SignalRMS / (Noise + Harmonics)RMS).

Click here to enlarge photo

This specification must include the input level used to determine the specification and the bandwidth over which the specification is measured.


Motorola Audio Oscillator/Distortion Analyzer:

Click here to enlarge photo

An older piece of equipment that provides a stable audio range oscillator with analog distortion analyzer. AC or DC powered.

Click here to enlarge photo


Marconi model TF-2304 FM Deviation/AM Modulation meter.


Bird Electronic Model 43 Thruline Wattmeter

Aa portable insertion-type instrument. It accurately measures forward or reflected power in coaxial transmission lines under any load condition. Power range is 100mW to 10 Kw using Bird plug-in elements with an accuracy of +- 5% of full scale. Frequency range, depending on elements is from 0.45 to 2300 Mhz.

In addition to the standard elements listed below for testing exciter and power amplifier levels, I also have a special Bird slug with a 50 db down port over the range of 25-1000Mhz at up to 500w. This sampler slug has a female BNC output to test instrumentation such as an oscilloscope, spectrum analyzer etc.

As my interest is in HF, 6m, 2m, 1.25m and 70cm mainly, my standard elements include:

2-30Mhz 500w 500H
2-30Mhz 1.0kw 1000H
2-30Mhz 2.5kw 2500H
2-30Mhz 5.0kw 5000H
25-60Mhz 100w 100A
25-60Mhz 1.0kw 1000A
40-50Mhz 1w 040-1
95-150Mhz 2.5w - - -
110-160Mhz 1w - - -
100-250Mhz 5w 5C
100-250Mhz 25w 25C
100-250Mhz 100w 100C
100-250Mhz 500w 500C
200-500Mhz 5w 5D
200-500Mhz 10w 10D
200-500Mhz 500W 500D
400-1.0Ghz 100w 100E


Bird Termaline Dummy Load Model 8251:

High-Power Oil-Dielectric 50 ohm dummy load with an N type female connector termination.: Power Rating: 1000W continuous, Frequency Range & VSWR: 1.1 max. dc to 1000MHz, 1.25 max. 1000-2000MHz 1.3 max 2000-2400Mhz over an ambient temperature range: -40C to +45C, Load coolant: 1.1 gal. (4.1 liters) silicone oil and weight of 25 pounds.


Bird Termaline Dummy Load Model 8135:

I have two 150 Watt continuous rated dry 50 ohm dummy loads that cover a frequency range up to 2.4 GHz. with an N type female connector termination.


Bird Termaline Dummy Load Model 82A:

I have two older 51.5 Ohm impedance 500 watt coaxial oil dielectric cooled rated DC - 2.5Ghz @ VSWR 1.1 Max. Rated 2000 watts with cooling, with an N type female connector adapater termination.


I also have one Bird model 8085 50 ohm 50 watt Termaline load with male N connector.


I have four (4) Celwave 25w continuous 100w intermittent N male loads, one with a 50db down signal tap.


Telewave model 44A diretional watt meter.

Click here to enlarge photo

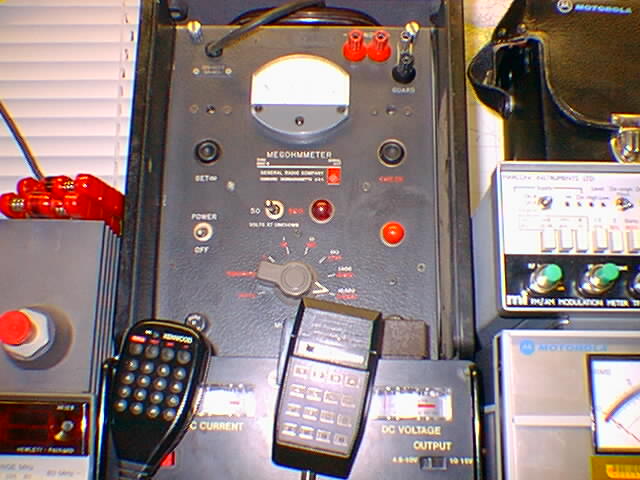

General Radio Company 1862B Megaohmmeter.

Click here to enlarge photo

Click here to enlarge photo


Fluke 12B Digital Multimeter

Micronta digital multmeter model 22-195A with transistor tester

Click here to enlarge photo


Attenuators:

I have one Hewlett-Packard 355C .5 watt 50ohm DC-1000mhz 1-12db with BNC connectors.

I have two (2) JFW Industries model 50R-080 0-12db 1 db step attenuators with N connectors. Frequency range and power rating are unknown at this time.
