The N2CKH Test Bench

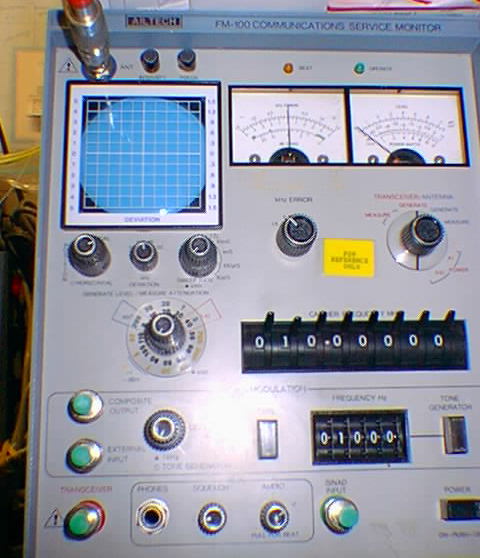

The AILTECH FM-100 Service Monitor is an older and less full featured unit than the Motorola unit. However it does provides analalog metering for my aging eyes and a makes an excellent FM monitor while using the other unit for more important tasks.

Click here to enlarge photo

The AILTECH makes a great quick test unit and second RF signal source. With a calibrated attenuator and full metering as a signal source, it also features and audio oscillator, Sinad meter and built-in dummy load and watt meter suitable for exciter and tranmitter power levels only.

Click here to enlarge photo

This unit I can also loan out for use to friends and other repeater owners in the local area to use.
